C8.3 Diesel Engine for Excavators with 4 Cylinder Diesel Engine, 330-530 Nm Torque, and 3.9L 5.9L 8.3L Displacement

C8.3 Diesel Engine for Excavators with 4 Cylinder Diesel Engine, 330-530 Nm Torque, and 3.9L 5.9L 8.3L Displacement

Brand Name:	Fit For C UMMINS TRUCK
Model Number:	4BT 6BT 6CT
MOQ:	1PCS
Price:	Negotiate
Payment Terms:	T/T,Western Union,L/C,D/A
Supply Ability:	100PCS/WEEK

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Engine Type:

4 Cylinder Diesel Engine

Warranty:

3 Months

Appliion:

Nissan Atlas

Displacement:

3.9L 5.9L 8.3L

Peak Torque(Nm@RPM):

330-530 Nm At 1600-1700 Rpm

Key Words:

Nissan Pickup Parts

Key Words 2:

Nissan Patrol Accessories

Packaging Details:

Customized Wooden Box

Supply Ability:

100PCS/WEEK

Highlight:

C8.3 excavator engine

Japanese excavator engine parts

modern excavator engine configuration

Product Description

C8.3 Engine for Modern Excavator Configurations

The all-new C8.3 engine is suitable for modern excavator configurations.

Engine Information

Engine Model	Fit For C UMMINS TRUCK
Engine Series	4BT 6BT 6CT 6LT
Displacement	3.9L 5.9L 8.3L 8.9L
Rated Power	80-130 hp at 2300-2600 rpm

This is a 3.9L inline 4-cylinder turbocharged diesel engine, suitable for C ummins 4BT. It has a displacement of 3.9 liters, with typical specifications of 105 horsepower and 265 lb-ft of torque, a compression ratio of 18.5:1, and a weight of approximately 750-780 lbs.

It is compact in size and widely used in industrial applications, as well as for installation and replacement in Jeeps and small trucks.

Technical Specifications

General Specifications

Displacement: 3.9L (239 cubic inches)
Engine Configuration: 4-cylinder, inline, 4-stroke, turbocharged
Bore x Stroke: 102mm x 120mm or 4.02 inches x 4.72 inches
Cylinder Head Material: Cast iron
Engine Block Material: Cast iron
Compression Ratio: 18.5:1
Valvetrain: Overhead valve (OHV), 2 valves per cylinder (standard models)
Injection: Direct injection

Performance (Stock)

Horsepower: ~105 hp at 2,300 rpm
Torque: ~265 lb-ft at 1,600 rpm

Physical Characteristics

Weight: 750-780 lbs (340-354 kg)
Length: 30.6 inches
Height: 37.7 inches
Width: 24.6 inches

Common Applications

Industrial equipment, generators, marine, and vehicle swaps

Additional Information

Notes:

The 4BTA model uses four valves per cylinder for higher performance, often producing 170 hp and 420 lb-ft of torque.
It's known for being durable and having many available parts for modifications.
A common drawback is its vibration due to being unbalanced.

Product Details

Vehicle Model: NISSAN UD TRUCK
Pack Quantities: 1PCS
Net Weight: 750KG
Volume: 1CBM
H/S Code: Engine HS:8408909290 Gearbox HS:8708409910
Fig.No.- Key No: As per specifications
Mark: TAI; customized based on customer demand

Order Information

Delivery Time: 15-20 days after deposit
Package: Customized Wooden Box
UOM: pcs
MOQ: Small quantity accepted with quantity discount (MOQ 1PCS)
Warranty: 3 Months

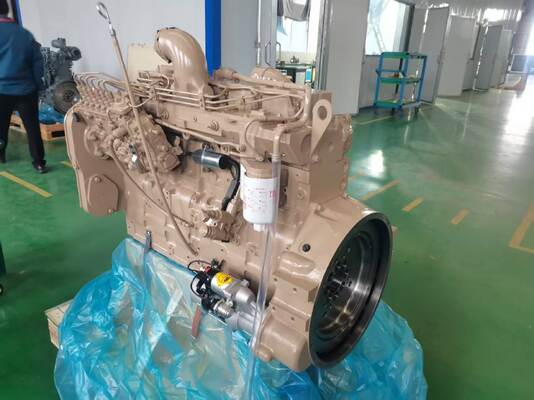

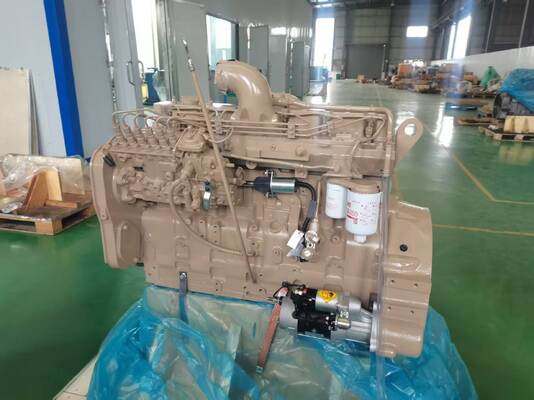

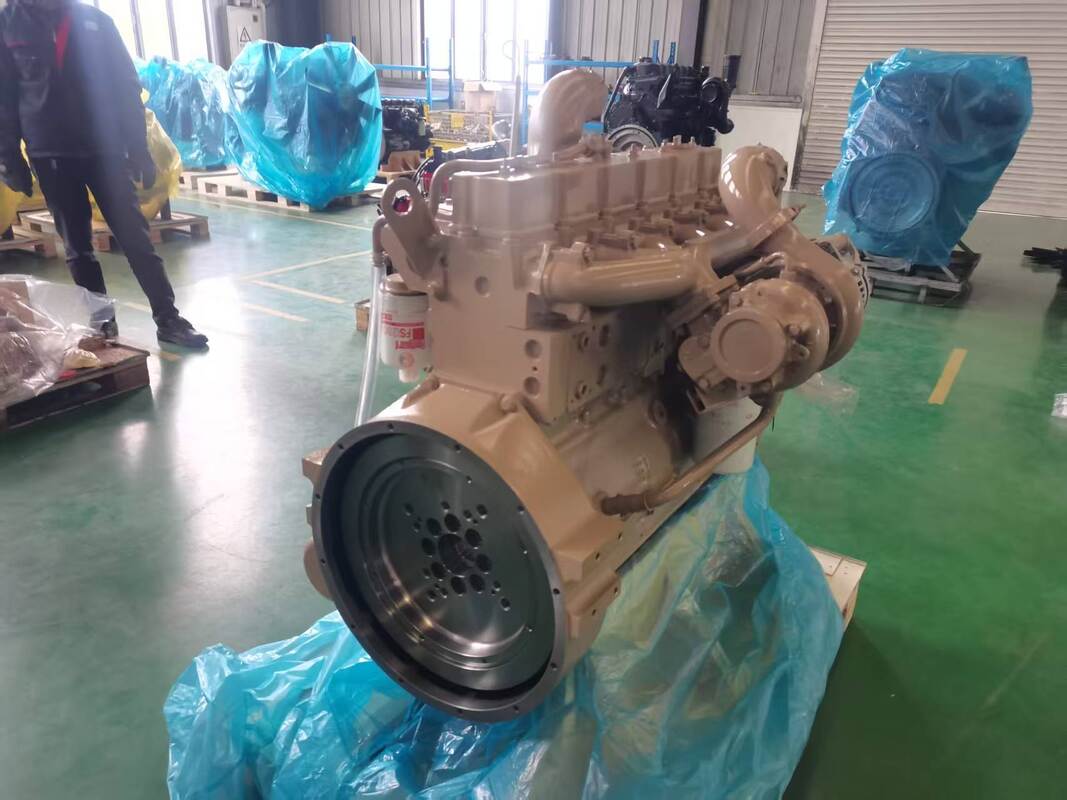

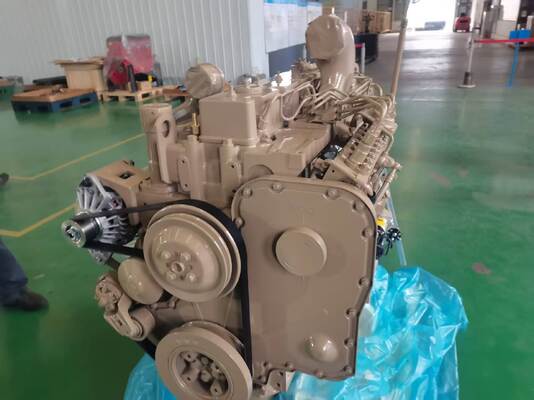

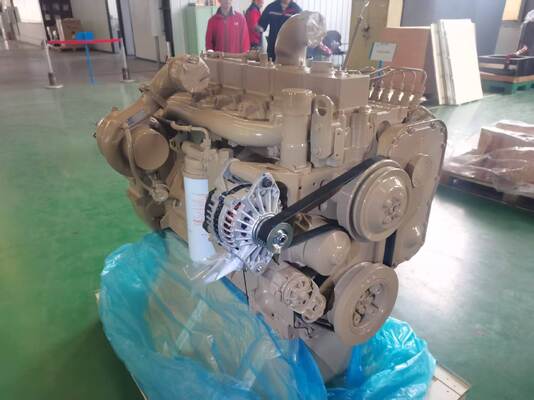

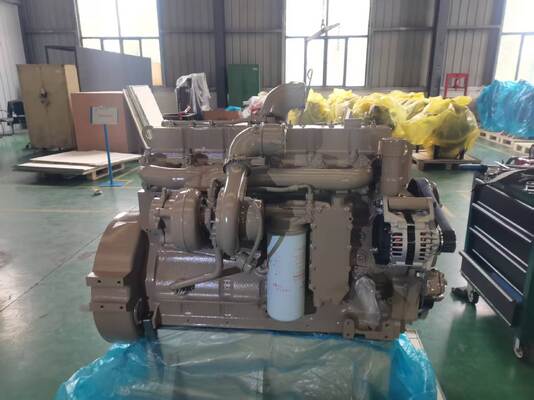

Product Images

Package and Loading

Technical Tips

What happens when the engine supercharger breaks down?

Reactions to a broken motor booster: blue or white smoke from the exhaust pipe of the car, decreased power, increased fuel consumption, increased oil, unstable turbine pressure. Blue or white smoke from the exhaust pipe when the car is idling is caused by poor sealing of the turbocharger impeller shaft.

The turbocharger fails, so the power of the car will drop significantly, the fuel consumption will also increase, the exhaust gas recirculation pipe is blocked, and the blue smoke will not only appear when refueling, but also accelerate the consumption of the oil.

Usually driving need to pay attention to the engine after starting do not drive directly, should let the engine idle for 2 to 3 minutes, wait until the supercharger is fully lubried before driving. When driving for a long time, the engine runs at high speed for a long time, and cannot be turned off immediately, and the sudden shutdown will cause the oil stuck in the turbocharger to overheat and damage the bearing.

Download Engine Documentation

Compatible Engine Models

Fit For ISUZU	4BD1 4BD2 4HK1 4HE1 4HG1 4JJ1 4JK1 6HK1 6BG1
Fit For HYUNDAI	D4BB D4BH D4CB D4EB D4DD G4KE G4FC
