4JB1T Isuzu Engine Spare Parts Assembly With Gearbox Secondhand

Product Description

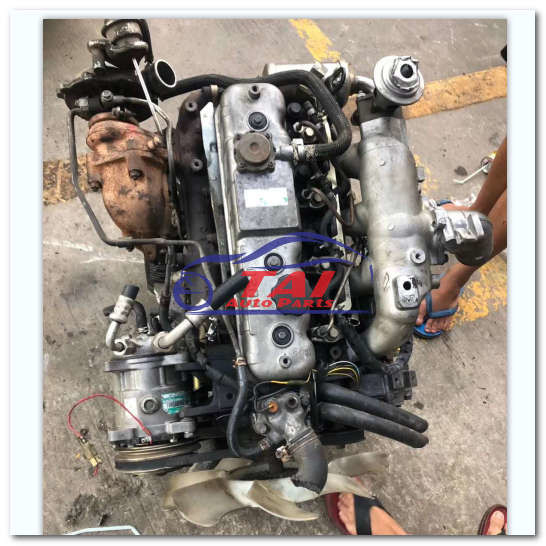

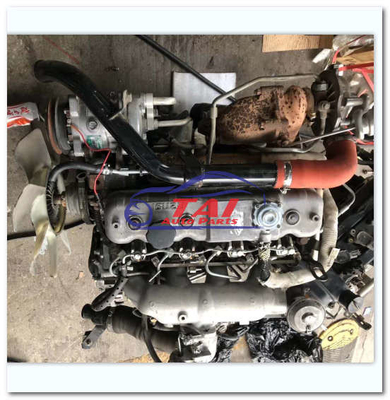

Japanese Original Isuzu Truck Used 4JB1T Engine Assembly With Gearbox

Description:

1, Vehicle Model: ISUZU TRUCK

2, Pack Quantities: 1PCS

3, Net Weight: 280KG

4. Volume:0.8CBM

5, H/S Code:Engine HS:8408909290 Gearbox HS:8708409910

6, Fig.No.- Key No:

7.Mark:      TAI;      if customer have demand based on customer demand

Delivery Time: 15-20 days after deposit

Package:  Customized Wooden Box

UOM: pcs

MOQ: Small quantity is accepted , but we offer quantity discount.   MOQ 1PCS

Warranty: 3 Months

PICS:

Package And Loading:

Tips:

Check the cylinder compression pressure

(1) The engine temperature should be about 80 ° C, and the degree of battery discharge should not be less than 50%.
(2) Blow away the dust outside the spark plug, remove the spark plug of each cylinder, and open the throttle and the damper door completely.

(3) Place the rubber tube of the cylinder pressure gauge on the first cylinder spark plug hole and hold it firmly.
(4) Use the starter to drive the crankshaft to rotate, write down the pressure number shown in the pressure gauge, test more than twice in a row, and then check the remaining cylinders in turn.
(5)〕 When the cylinder pressure is lower than the specified standard, 20 to 30g of new lubriing oil can be filled to the top of the piston, and the pressure can be tested again, if it rises significantly, it means that the piston ring is worn. If the pressure is the same as before, it indies that the valve or cylinder gasket is leaking and should be further examined.

The main reasons for insufficient compression pressure of the cylinder:

(1) the cylinder gasket is damaged.
(2) The valve gap of the intake valve and the exhaust valve is adjusted improperly.

(3) The inlet valve or exhaust valve and seat are not tightly sealed.
(4) The piston ring is installed incorrectly and is not installed according to the original factory regulations.
(5) The piston ring and the cylinder are seriously worn, or the piston ring is stuck in the piston ring groove.
