Engine Assembly and Engine Parts for More models as following:

Office:

More Spare Parts:

Packing:


Wearhouse:

Tips:

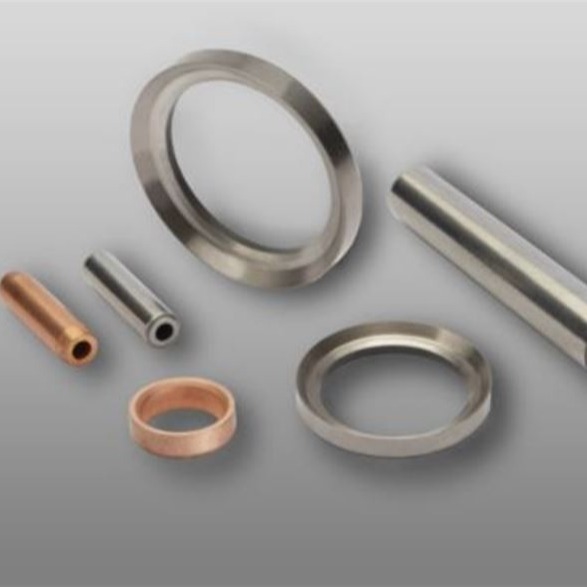

The function of valve seat:

The physical and mechanical properties of the material must be considered when selecting the material. Because powder metallurgy materials have the advantages of high forming dimensional accuracy, flexible alloy selection and post-sintering processing technology, and obvious saving of raw materials, man-hours and energy, etc.; therefore, compared with other materials, they have obvious competitiveness and are increasingly used in internal combustion engines.



How to repair:


1, cutting method

is to cut off the valve seat ring with a tool on the machine tool. When the valve seat ring is cut to thinner, the valve seat ring shrinks and loses the interference fit with the valve seat bottom hole. Under the action of cutting force, the valve seat ring and the tool rotate together, which may result in the valve seat bottom hole The size changes and the roundness does not meet the technical requirements. Therefore, when using this method to remove the valve seat ring, in order to ensure a good interference fit between the valve seat ring and the bottom hole of the valve seat ring, it is generally necessary to use a tool to expand the size of the valve seat ring bottom hole, and at the same time use a correspondingly enlarged outer diameter size The valve seat ring is used in conjunction with it.

2, drawing method
is to use a drawing tool to directly pull out the valve seat ring from the cylinder head. For example: first tap the thread on the inner surface of the valve seat ring, and then screw the threaded rod of the corresponding size into the valve seat ring. While ensuring that the valve seat ring and the threaded rod are perpendicular, tap the threaded rod lightly with a hammer , Until the valve seat ring is pulled out. The drawing method basically changes the size of the bottom hole of the valve seat, and the amount of change depends on the drawing method and the force method of the drawing tool.
