4BD1 4BD1T 4JB1 4JB1T 3200rpm 70.6kw Diesel Engine Assembly Parts

Product Details:
Model Number: ISUZU 4BD1 4BD1T
Certifiion: ISO9001/TS16949
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Woody Packaging
Delivery Time: within 5 days after receive payment.
Payment Terms: T/T, WESTERN UNION, L/C, D/C
Supply Ability: In Stock
  • Detail Information
  • Product Description

Detail Information

Place Of Origin: Japan Brand Name: ISUZU
Stock: In Stock Model: 4BD1 4BD1T
Condition: Good Quality: Excellent
High Light:

3200rpm Diesel Engine Assembly Parts

,

70.6kw Diesel Engine Assembly Parts

,

Isuzu 4BD1T Engine Spare Parts

Product Description

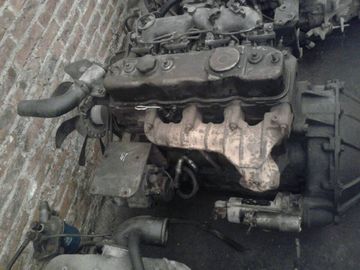

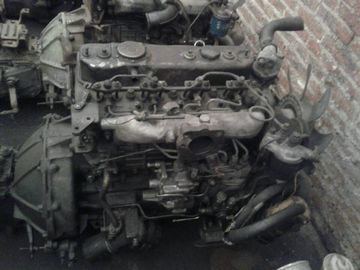

Used ISUZU 4BD1 4BD1T Engine assy, Usada ISUZU 4BD1 Motor

4BD1 4BD1T 4JB1 4JB1T 3200rpm 70.6kw Diesel Engine Assembly Parts 0

4BD1 4BD1T 4JB1 4JB1T 3200rpm 70.6kw Diesel Engine Assembly Parts 1

4BD1 4BD1T 4JB1 4JB1T 3200rpm 70.6kw Diesel Engine Assembly Parts 2

Model ISUZU 4BD1 engine
Type vertical in line ,water cooled,4 stroke, natural aspiration
Number of cylinders 4
ISUZU 4BD1 engine Bore * Stroke (mm) 102*118
ISUZU 4BD1 engine Gross displacement 3.856
ISUZU 4BD1 engine Compression Ratio 17.5: 1
ISUZU 4BD1 engine Rated Speed   (rpm)        3200
ISUZU 4BD1 engine Rated Power   (kw)                                        70.6
ISUZU 4BD1 engine Injection type Direct  injection
ISUZU 4BD1 engine Overall Dimension (mm) 921*651*751
ISUZU 4BD1 engine Min fuel consumption ≤221
ISUZU 4BD1 engine Emission standard EURO
ISUZU 4BD1 engine Net weight (Kg) 330
ISUZU 4BD1 engine Our provided Isuzu 4BD1 and 4BD1T engine are for different appliions.



ISUZU 4BD1 engine Engine model ISUZU 4BD1T
ISUZU 4BD1 engine Type vertical in line ,water cooled,4 stroke,Turbocharged
ISUZU 4BD1 engine No.of Cylinder 4
ISUZU 4BD1 engine Bore/stroke (mm) 102x118
ISUZU 4BD1 engine Displacement (L) 3.856
ISUZU 4BD1 engine Injection type direct injection
ISUZU 4BD1 engine Compression ratio 17:01
ISUZU 4BD1 engine Rating power  (kw/r/min) 103/2800
ISUZU 4BD1 engine Max torque/speed  (N.m/r/min) 392/1400-1800
ISUZU 4BD1 engine Min fuel consumption (g/kw.h) ≤205
ISUZU 4BD1 engine Idle speed   (r/min) 750rpm
ISUZU 4BD1 engine Oil consumption  (g/kw.h) ≤0.61
ISUZU 4BD1 engine igniter order 1-3-4-2
ISUZU 4BD1 engine Sound class  dB(A) 114
ISUZU 4BD1 engine Net weight (Kg) 340
ISUZU 4BD1 engine Overall dimension (mm) 963*660*820.8



About us:

Twoo Auto Industrial LImited has been supplying Hino, Mitsubishi , Isuzu Nissan UD ... Vehicle accessories. Such as engine, transmission, starter, alternator, transfer CA-SE, drive shaft, differential, before and after the bridge, shock absorber, brake disc, brake pump, the direction of the machine, door, poles, lamps and lanterns, rearview mirror, instrument and so on. We promises our clients : all goods from our company, can past loading test. Large objects such as gearbox can loading cargo after commissioning. If there is any quality problem on approval


Office:

4BD1 4BD1T 4JB1 4JB1T 3200rpm 70.6kw Diesel Engine Assembly Parts 3



More Spare Parts:

4BD1 4BD1T 4JB1 4JB1T 3200rpm 70.6kw Diesel Engine Assembly Parts 4

4BD1 4BD1T 4JB1 4JB1T 3200rpm 70.6kw Diesel Engine Assembly Parts 5



Packing:



HINO E13C USED JAPANESE DIESEL ENGINE, HINO Spare Parts With Good Running Condition



4BD1 4BD1T 4JB1 4JB1T 3200rpm 70.6kw Diesel Engine Assembly Parts 7































































Tips:

What should I do if the engine emission fault light turns on while the car is in motion



1. You should find a safe place to stop and check whether the engine has abnormal noise and whether there is oil leakage. If there is no abnormality after the inspection, it may be a false alarm of the fault sensor lamp. When the pollution light is on, the engine does not shake or shakes slightly. At this time, the owner does not need to worry when using it, and can be used normally, and can be checked or maintained when there is time or convenience.

2. Vehicle malfunction lights are usually caused by the fuel emission system. You start and stop the vehicle when the malfunction lights are on, and after starting and stopping the vehicle three times, you should observe whether the malfunction lights are still on, or if you want to turn them on. If the light is on, you need to check the fault code in the store in time to see if it is an engine problem or a sensor failure.
