Product Description

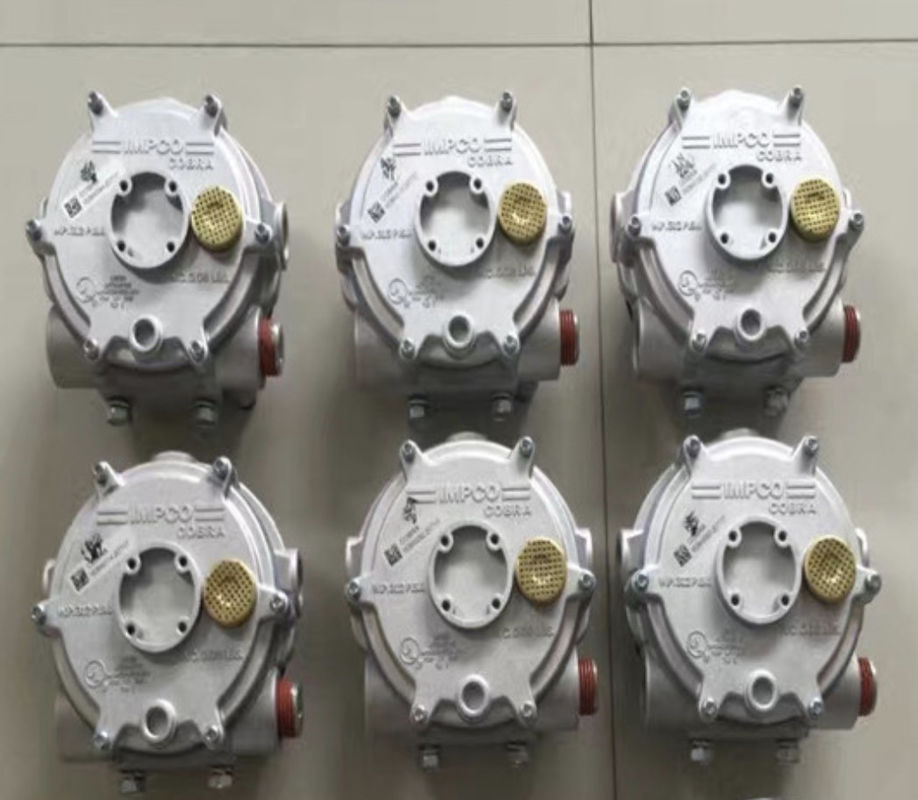

LPG FORKLIFT REGULATOR PRESSURE RELIEF VALVE

It shows that the
Cobra series regulator has superior performance and good pressure output continuity. Cobra series products have a longer service life and are ideal products for pollutant emission control devices. The design of the main pins and the fluorosilicon diaphragm provide the most appropriate resistance (to prevent excessive pressure increase) and can operate at low temperatures. The standard blue secondary spring provides negative 1.5” wc (0.37 kPa) pressure. The optional yellow secondary spring provides negative 0.5” wc (0.12 kPa) output power.

Specifiion
Fuel type............ LPG liquid/gas

Maximum inlet pressure ............312 psi (21.51 Bar)

Minimum...30 psi (207 kPa)

Rated outlet pressure
standard (blue spring) ..........-1.5” wc (-0.37 kPa)

Cobra I (yellow spring) .........-0.5” wc (-0.12 kPa)

HP/kW ............................................... 100 hp (75 kW)

Operating temperature range.........-40°F to +250°F (-40°C to +121°C)

Fuel filtration requirements...40 microns

Heat source...must be LPG liquid

Installation loion........................ Recommended vertical installation. If you can control the use of HD-5 or HD-10 specified LPG Pollutants generated by fuel can also be horizontal.

Diaphragm material...............silicone and fluorosilicone

Appliion................................. Base type, transportation, industry and automobile

Certifiion............ UL (AU1502) ECE for special certifiion

A total height B total depth C total width D back cover to the center of fuel outlet

E back cover to the center of the water outlet F installation hole center distance G coolant inlet and outlet (NPT) H fuel inlet (NPT) J a gas chamber detection port (NPT) K fuel outlet (NPT) L balance line connection hole (NPT)
